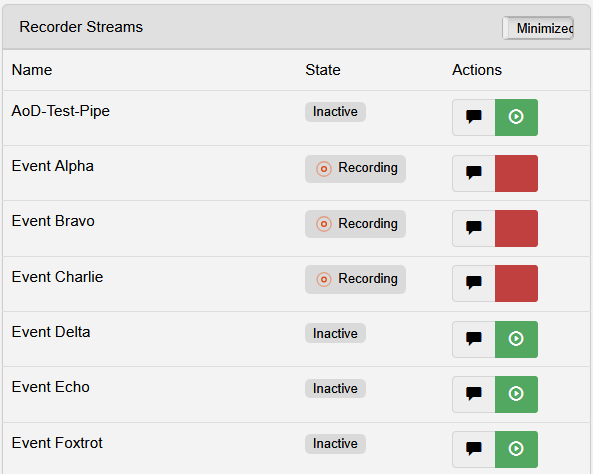

This widget allows you to control the recording of individual audio streams and events. It includes the option to comment events. The comments are saved in the Log.
| File sink required | |
| The Recorder Streams widget only displays PIPEs with a File sink element. |
| ! | Alternative Widgets |
|
The Recorder Streams widget controls individual file recorder PIPEs. If you want to control whole PIPE groups, see the following widgets:
|
| Element | Description |
| Toggle Minimized/Large | Toggles the size of all buttons between small ("Minimized") and large ("Large"). |
| ⇐ Name | Displays the set name for that PIPE. |
| State |
Displays the current state of the PIPE group.
|
| ⇒ Actions |
Buttons to control the associated PIPE.
|
