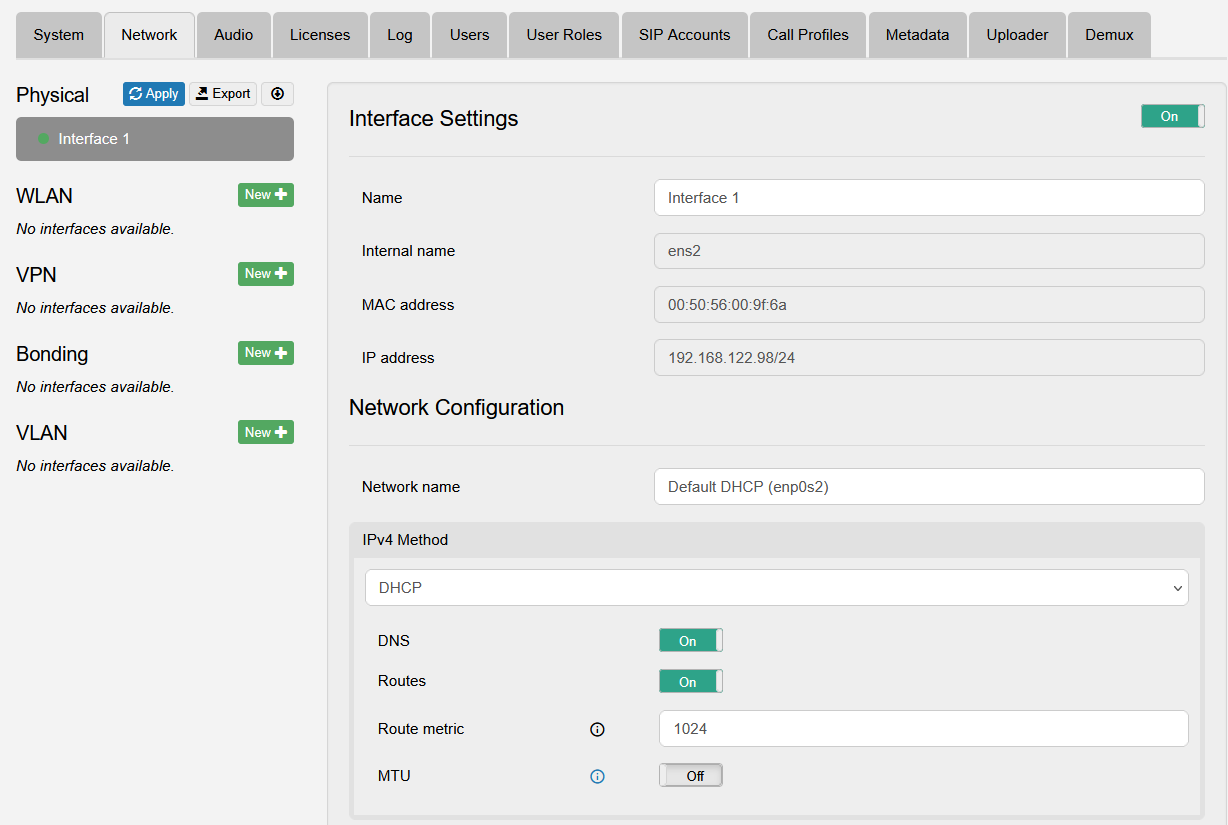

This is the menu where network settings can be configured.
| Element | Description |
| Export | Exports the current network settings. |
| Physical Interfaces | Sets which interface is being configured. |
| Interface Settings | |
| Name |
Sets the internal naming of the interface. This name is referenced in PIPEs. |
| Internal name | Displays the automatically generated name in the software backend. |
| MAC address | Displays the mac address of the interface. |
| IP address | Displays the current IP address of the interface. |
| Network Configuration | |
| Network name | Displays the name of the network in which the interface is. |
| DHCP/Static Dropdown | Dropdown menu for enabling or disabling DHCP (automatic IP assignment). If disabled, a static IP can be set under Static IP address. |
| DNS | Activates ("On") or deactivates ("Off") DNS. |
| Routes | Activates ("On") or deactivates ("Off") routing. |
| Route metric | Sets the route metric for the router. The higher this value is, the greater is the priority for route and therefore the chance that this route will be chosen. |
| MTU | Activates ("On") or deactivates ("Off") MTU. |
| MTU | Sets the maximum transmission unit. |
| Server Configuration | |
| DNS Server | New DNS servers can be added here. This serves the identification of the hostname. Enter a desired DNS server here and click on + to add it. |
| NTP Server | New NTP servers can be added here. This serves the time synchronisation of the network. Enter a desired NTP server here and click on + to add it. |
| Routing | |
| Network Routes | New network routes can be configured here. Enter the required information and the gateway here and click on + to add it |
| Services | |
| SSH | Activates ("On") or deactivates ("Off") access via SSH. |
| WebAPI | Activates ("On") or deactivates ("Off") access to the WebAPI. |
| WebAPI (HTTPS) | Activates ("On") or deactivates ("Off") access to the WebAPI via HTTPS only. |
| Ping | Activates ("On") or deactivates ("Off") access pinging. If deactivated the system does not respond to pings. |
| SIP / RTP | Activates ("On") or deactivates ("Off") transmission via SIP and RTP. |
| SNMP | Activates ("On") or deactivates ("Off") SNMP traps. |
| Icecast server | Activates ("On") or deactivates ("Off") the internal Icecast server. |
| Save | Saves all change. |
